TRANSISTOR SI-N 100V 0.05A

#440
Наличност на склад: 0 yes

0,00 лв.
Количество:

2SC2808

Описание


TRANSISTOR,SI-N,100V,0.05A,0.5W,140MHZ,
Polarity: NPN
Maximum collector power dissipation (Pc), W: 0.5
Maximum collector-base voltage |Ucb|, V: 160
Maximum collector-emitter voltage |Uce|, V: 100
Maximum emitter-base voltage |Ueb|, V: 5
Maximum collector current |Ic max|, A: 0.05
Maksimalna temperatura (Tj), °C: 155
Transition frequency (ft), MHz: 140
Collector capacitance (Cc), pF: 3.3
Forward current transfer ratio (hFE), min-max 180-820

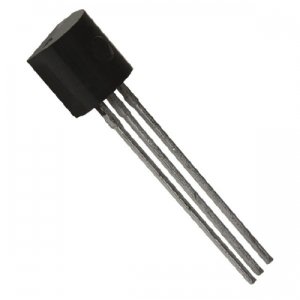

TO-92
